How to "Export" Silhouette Studio Files to SVG files

Update 06/02/2014:  Wow!  I posted this 1.5 yrs ago and its still my most popular post.  I also still get a lot of questions about "exporting" your files.  If you would like an answer to your question, please, please use the contact form on the right hand side of this blog.  I can put answers in the comments section, but usually people don't come back to check for the answer.

Back to our regular scheduled program...

Hello again!  What a shocker eh?  Two posts in as many days.  I'm tellin' ya, I'm on a roll. :) Well, I promised that I would be back today with a tutorial on how to get your Silhouette Studio files into svg format. I'll show you the process, but also note here that, programs like MTC or SCAL can import jpg and png file, so you may not need to go all the way to the end of the process.  I'm not completely familiar with MTC, and even less familiar with SCAL, so I'm not certain at this point if there is an advantage to importing the svg rather than just a jpg.  My only observation right now is that, at least, with a svg file, the tracing is already done for you and ready to put into different layers (if you choose).  Not sure how much of a time saver that is...

So, I think I mentioned that I am going to buy a new KNK Zing cutter early next year. The reason I want to export my Studio files is so I can cut them using the Zing. The Zing come with MTC, which is totally a different file type and can't import the proprietary Silhouette Studio files. Silhouette Studio will allow you to export their files as svg files, but only if you have an older version (v1.9 or v2.0) of their Designer Edition software. I'm a cheap ass and don't want to spend the $50 just so I can export when I can get free programs to do it for me. May be a few more steps, but it works.

Ok, so to begin, there are a couple programs you need.  All of them free.  You need to have Inkscape and Bullzip PDF printer installed.  Here are the links for these:

click on: Looking for the latest version? Download Inkscape-0.48.2-1-win32.exe (35.7 MB)

click on: PDF Printer    4.5 MB    Free    Freeware (up to 10 users)    Download | Donate

Of course, I'm assuming you have Silhouette Studio installed, otherwise why would you want to do this tutorial??  Ok, let's start.  Here's what I do:

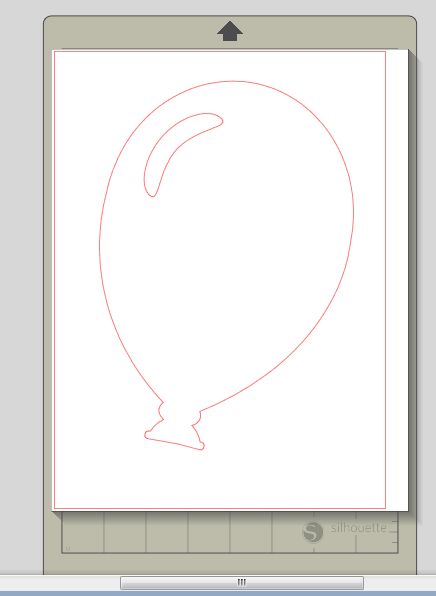

1.  Open up Silhouette Studio and open up the file you want to "export".  In this case I opened the balloon file that comes with SS:

2. Use Ctrl A to select all images. You could put more than one file on the page, but I wouldn't do too many - maybe 3 or 4 at a time.  Just remember if you do more than 1, they will all be part of one file and you will need to save the final converted files separately, and manually.

3. Right click and select ungroup:

4. Select the inner shapes that are cut out.  Go to the Fill screen and fill these shapes with white:

5. Now select all the outer shapes and fill these shapes with black:

I chose to use black & white since this will give a really good contrast and make it easier for find the edges of the image.  You can choose any colours you want, but I think b&w is probably the best.  Also, if your entire image turns black when you fill the outside shapes, you need to "move it to the back" so that the inside shapes are on top and visible.

6. Go to the Lines setup and make sure that the "print cut lines" checkbox is NOT checked:

This is so that when we "export" the image, you won't have the red cutting lines showing (or whatever your default colour is).

7. Now go into your preferences, and then to the output preferences and change the output dpi to whatever you prefer and click the "ok" button.  I chose 600 just so I could have a good quality image.  I think 300 is probably good enough (that's what most digital scrapbookers use and it gives good resolution for printing, plus your file size will be smaller and load quicker).

8. Now go to File -> Print:

9.  Select BullZip PDF Printer and click print (don't worry its not going to actually print a hard copy to your printer):

10.  A screen will pop up where you can set the output options for the file.  Choose either png or jpeg from the drop down list.  I prefer png because they can have a transparent background, but either will work.

11. Click on the Image tab on the pop up window.  Here you can change the dpi of the output image.  I changed mine to 600, but again, 300 would probably be sufficient.  You will change both horizontal and vertical to the same number.

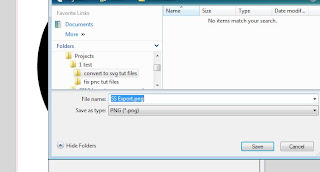

12. Click the Save button and navigate to the folder where you want to save your file.

13. Start Inkscape and open the file you just created.

14.  Use Ctrl A to select all your image.  Little black arrows will show up around the image.  Then go to Path -> Trace Bitmap.

15.  A pop up window will open.  In the window, change the brightness cutoff setting to 0.500 and then click the ok button.  Close the window by clicking the red x in the top right hand corner.

16. Go File -> Save As:

17.  Select Inkscape SVG in the drop down list below the name field and then, go to the folder you want to save your svg in and type in the name you want to give the file.

That's all there is to convert your Studio file to svg.  The next steps I'm showing are for importing the svg into MTC since that is what I will be using when I get my new Zing. :)

19.  Start MTC and go File -> Import -> SVG/SVGZ file

20.  Navigate to the folder where you saved your svg file and click on the file.  A preview will show up in the preview window if all went well with the export process.  Click the open button.

21.  This will bring the svg into MTC, but it will be a very, very large image.  You will probably have to lower the zoom all the way down to 10% to see it.  At this point, you can shrink down the image so that it fits onto your page.

That's it.  You can now manipulate the file as you please.

I hope it all made sense and you were able to follow along.  As I mentioned earlier, actually converting the file to svg isn't absolutely necessary for MTC or SCAL, so this may be over kill, and you can just use the jpg/png file you created from SS.  If you notice any errors, or something doesn't seem right, please contact me using the contact form on the right-hand side of my blog.  I'll get back to you with an answer as quickly as I can.

Well, I think I'll try and take some pictures of a few scrapbook pages I made over the last couple months and show them to you in a day or so.  I had gotten to the point where I wasn't enjoying blogging for a quite a while, but I've enjoyed doing these last two, so maybe I'll be able to keep it up for a little while.  We'll see. I do have a few things I want to show.

That's all for today.  See you soon...


12/21/12:  Nicole posted a comment and a question.  Nicole, I don't have any way to contact you, so hopefully you see this reply:

You are obviously using the designer edition of Silhouette Studio.  You can go into the View menu and turn off the grid so that it doesn't show when you print to pdf.

03/08/14:  I've had some questions about the grid marks showing up even though they have been turned off in Silhouette Studio.  I've tried to re-create this and can't seem to do it.  I'm not sure if its happening with the free version or the DE version since I'm now working in the DE version.  I haven't had time to install the free version on a different computer to see if it happening there.  The only thing I can tell you at this point is to check to make sure the grid lines are turned off.  When I get time to install all the programs on a different computer, I'll report back to let you know if I've been able to duplicate the problem and if I've been able to find a solution.
